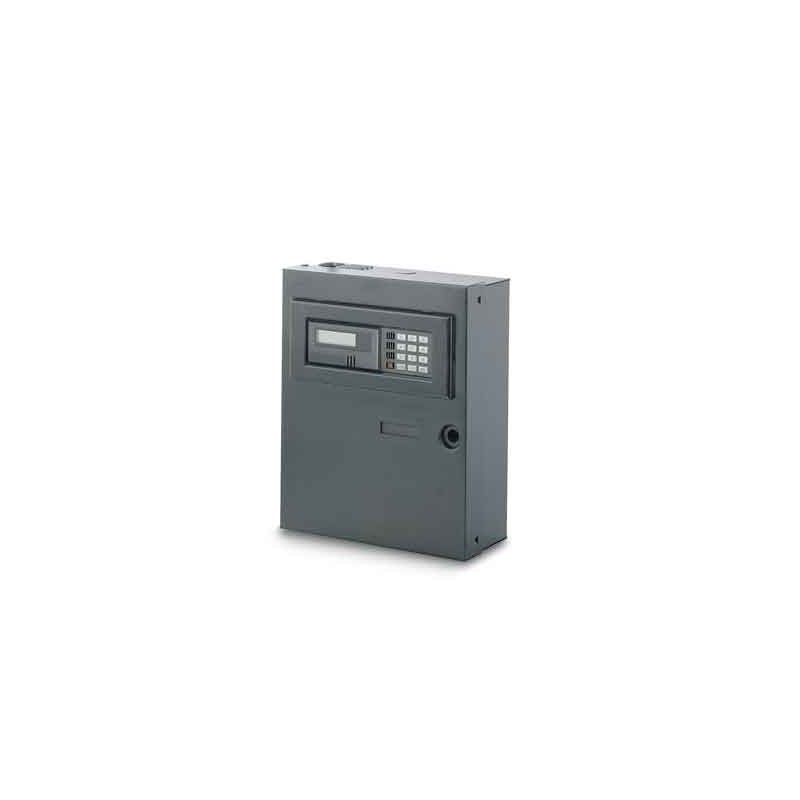

Urmet Local Synthesis Telephone Dialer

Two-channel telephone dialer in metal case. It is possible to associate 4 telephone numbers to each input and customize message recording.
- Keyboard with 10 numeric keys from 0 to 9 plus two confirmation keys (CON) and select (SEL)- LCD alphanumeric display 8 characters
- A red LED to indicate power supply
- Microphone and loudspeaker for recording and listening to messages
- Memorization of programming in non-volatile memory EEPROM
- Maintenance of recorded messages also in the absence of power or battery
- 20 seconds of message recording (10 seconds for each input)
- Nominal power supply voltage: 27.6 Vdc ± 2 Vdc
- Alarm input voltage: 21 Vdc ÷ 28 Vdc
- Two fully programmable alarm inputs
- Anomaly alarm output (open collector)
- Four telephone numbers from sixteen digits each associated with each input
- A telephone number shared by the two inputs, maximum sixteen digits, for the follow me function
- Repeating the programmable selection from 1 to 3
- Repeating the message from 1 to 5
- 6-digit programming access code
- 4-digit follow-me programming access code
- Telephone line protections
- Protections against power supply polarity inversion
- Operating temperature: from - 5C° to +45°C
- Dimensions: 222 (L) x 272 (H) x 85 (D) mm
