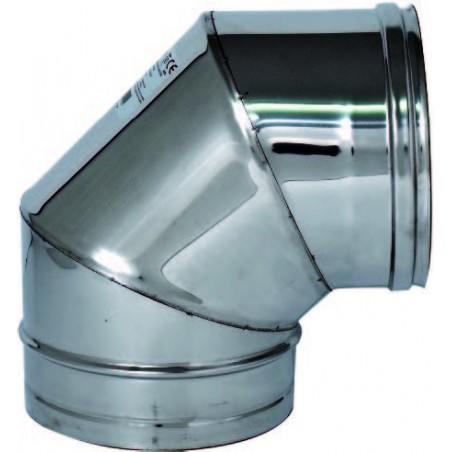

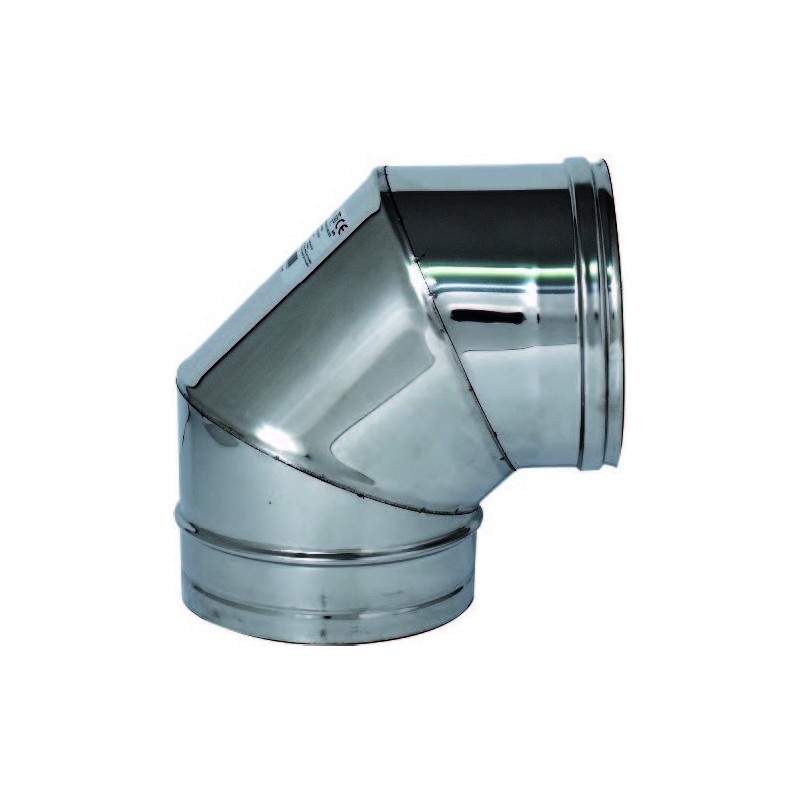

90° bend D.120mm Europrofil

The MONO AISI 316L Europrofil series consists of circular modular elements in AISI 316L stainless steel 0.5mm thick with BA (polished) finish and is made with longitudinal welding with the automatic TIG process. This product is equipped with a "MALE FEMALE cup" coupling system and a 12mm triple lip silicone gasket is supplied on request which ensures perfect pressure tightness between the individual elements and the tightness class of the duct is in positive pressure P1. In the case of installations without the gasket, the tightness class of the duct is in negative pressure N1. For a better mechanical seal, the locking collar is available which, by means of the special tightening screw, ensures greater mechanical stability.
