Insert for Wood Fireplace F.lli Lerda L-70 Fire 14 Kw

Insert for Wood Fireplace F.lli Lerda L-70 Fire 14 Kw

FLL70FIRE
Disponibile
1,536.89
913.48 Save 623.41
Tax included
Quantity

  • Secure Payments and Easy Returns Secure Payments and Easy Returns
Description

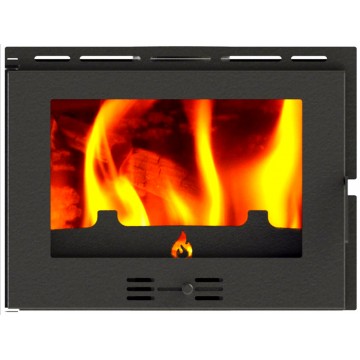

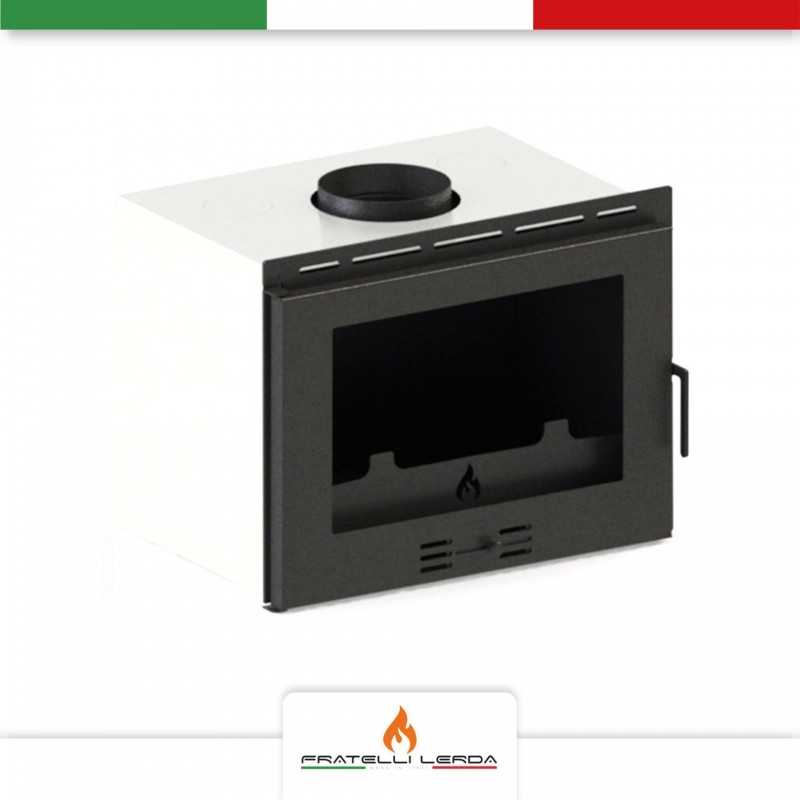

The L-70 Fire F.lli Lerda ventilated wood-burning fireplace insert, entirely made of steel, is designed for ducting in two rooms.



The Fire line includes: the 4 mm combustion chamber, the 6 mm deflector and the 6 mm thick back plate.



If you have a fireplace that you use little or that you want to redevelop, this product is the one for you.



The wood-burning insert is very simple to assemble: the fan is plugged into the back of the fireplace, and simply needs to be connected to a 220V power supply. Please remember that the fireplace is supplied with a fan, but the electrical connection must be made on site.



F.lli Lerda control unit with temperature kit code FLCENTR separately , which satisfies these requests. Otherwise, for manual on/off use and adjustment of the fan in one of the five speeds, simply purchase the F.lli Lerda Touch control unit code FLELX AIR .



For ducting we recommend using flexible aluminum or steel pipes and covering them with mineral wool, so as to avoid heat loss during the journey. The manufacturer guarantees good performance for ducts of up to 5 meters in length and made without elbow bends. The connection of the canalization pipes in the appropriate seats must be connected using connection sockets, code FLRaccordiCan .



F.lli Lerda wood-burning fireplace inserts are the best way to heat your rooms with maximum energy efficiency: the wood-burning fireplace becomes an excellent alternative or integration to traditional heating.

Wood-burning fireplace insert ventilated, black in colour, made of thick S235JR steel, with nominal thermal power of 14kw and 70% efficiency with approved autonomy of 8 hours. Complies with European standard EN 13229.



It is equipped with a removable ash drawer and 2 ductable outlets with a diameter of 10cm.



Dimensions 70x52x56 cm with fan; internal dimensions of the hearth 42x49 cm; useful depth 33cm.



Forced ventilation with tangential fan with a flow rate of 200 cubic meters per hour; combustion air adjustment on the front.



Model L-70, Fire line, characterized by 4mm combustion chamber, 6mm deflector and 6mm thick back plate, F.lli Lerda brand.



Technical features:



  • 6 mm deflector
  • Combustion chamber 4 mm
  • Entirely made of high thickness S235JR steel
  • Nominal thermal power: 14 Kw
  • Yield: 70%
  • Carbon monoxide release rate in fumes: 0.23%
  • Average flue gas outlet temperature: 260 °C.
  • Continuous fire hearth
  • Approved autonomy: 8 hours
  • Product approved to European standard EN 13229

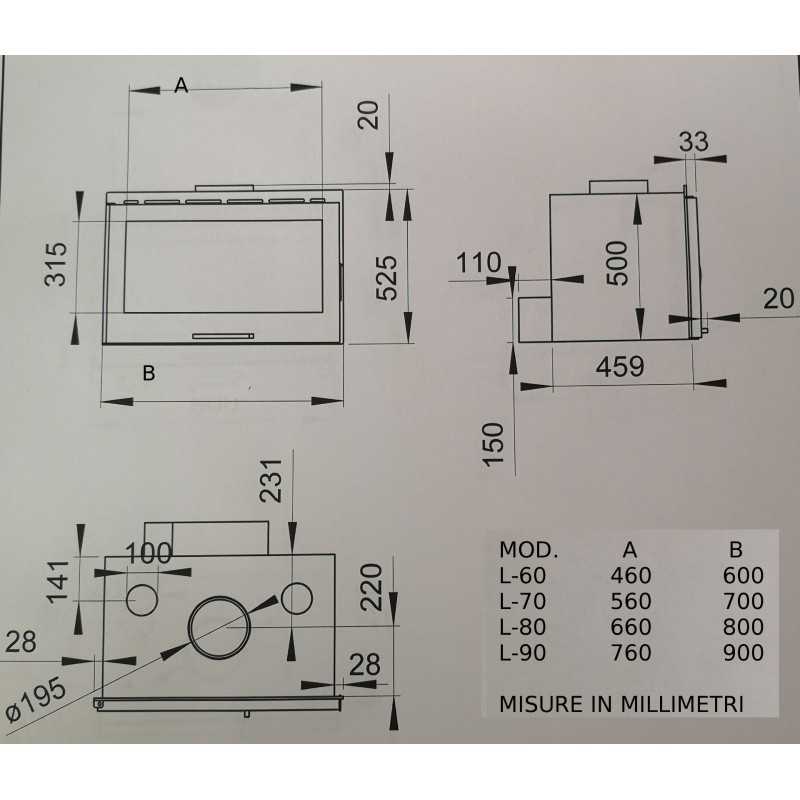

  • Dimensions (W x H x D): mm (700 x 520 x 560)
  • Internal dimensions of the hearth (H x W): mm (420 x 590)
  • Useful depth: 330 mm
  • Glass size (W x H): mm (530 x 390)
  • Glass thickness: 4 mm
  • Ceramic glass for high temperatures 800°C
  • Ø smoke outlet 194 mm
  • Combustion air adjustment on the front
  • Removable ash drawer
  • Forced ventilation
  • Tangential fan with a flow rate of 200 cubic meters per hour
  • Weight: 80 kg
  • 2 ductable outlets Ø 100 mm
  • Warranty: 2 years
