Fireplace Wood Insert F.lli Lerda L-90 Ventilated Kw 18

Fireplace Wood Insert F.lli Lerda L-90 Ventilated Kw 18

FL9811009
Disponibile
1,648.68
1,069.00 Save 579.68
Tax included
Quantity

Order it before 19:00 of tomorrow and receive it 08-01-2025 with BRT - Express

  • Secure Payments and Easy Returns Secure Payments and Easy Returns
Description

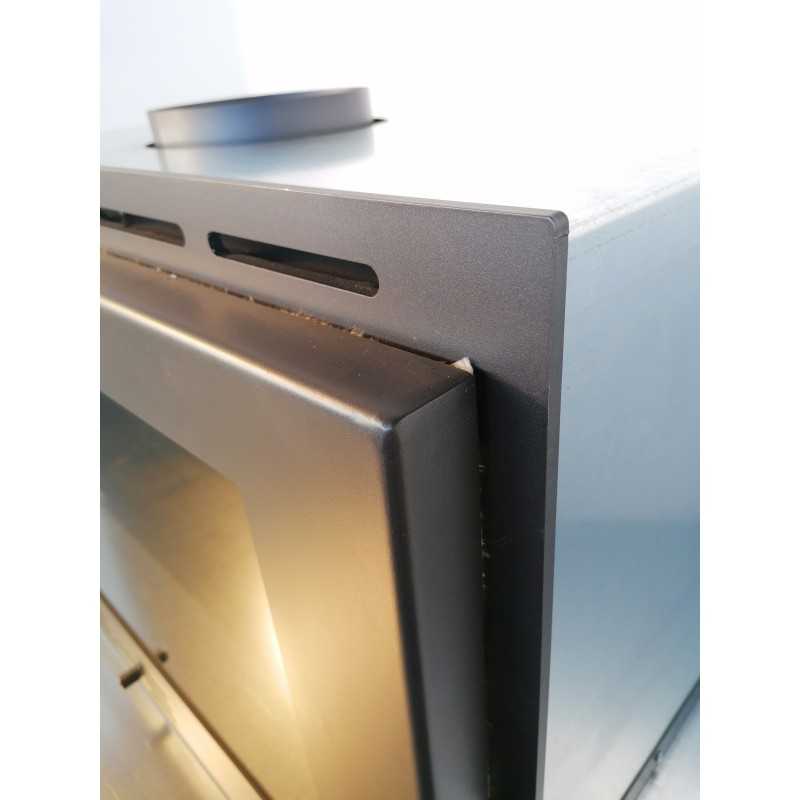

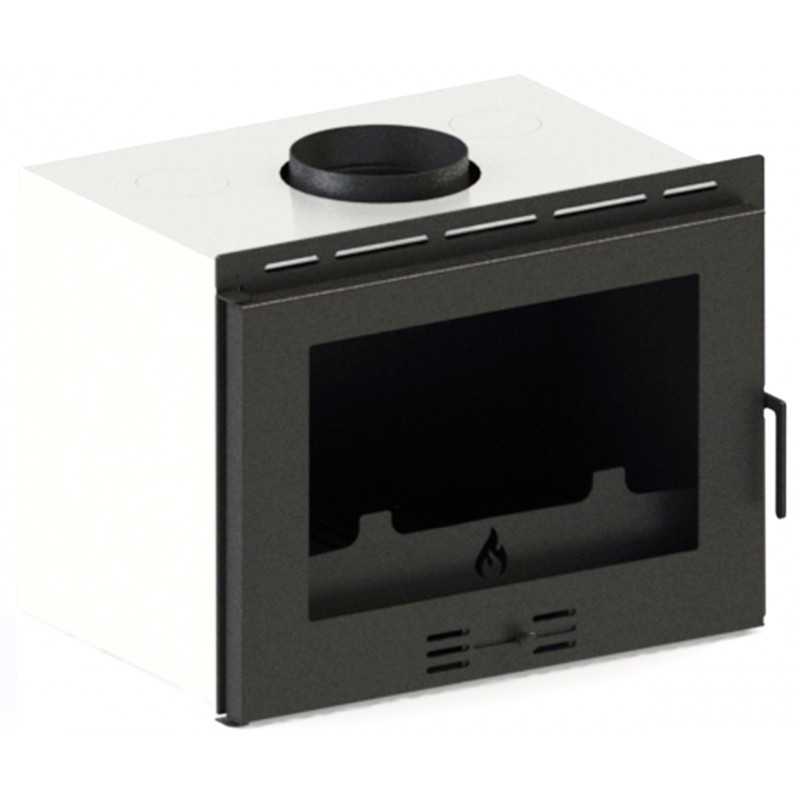

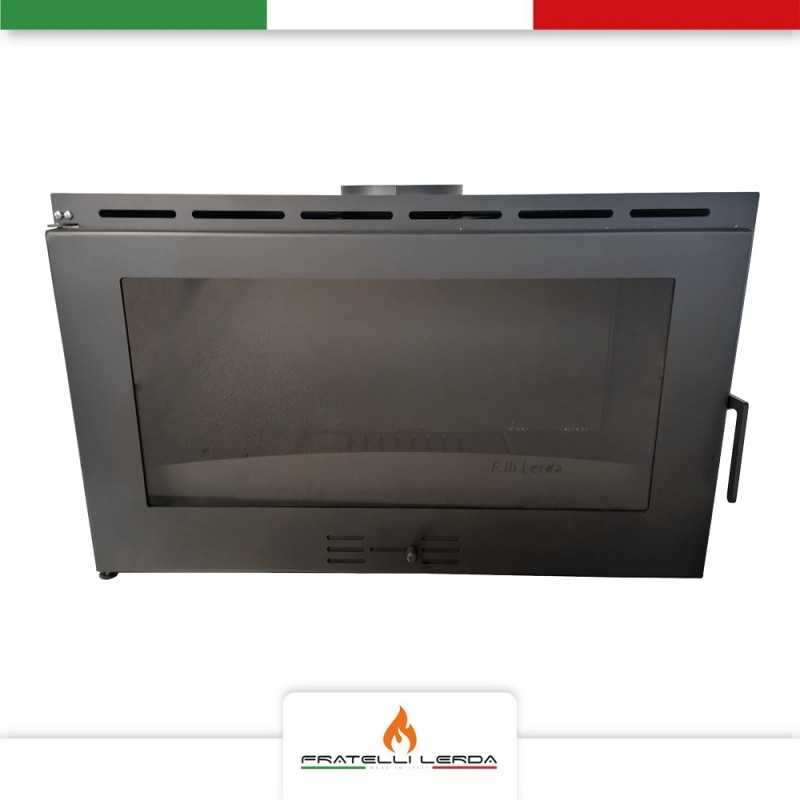

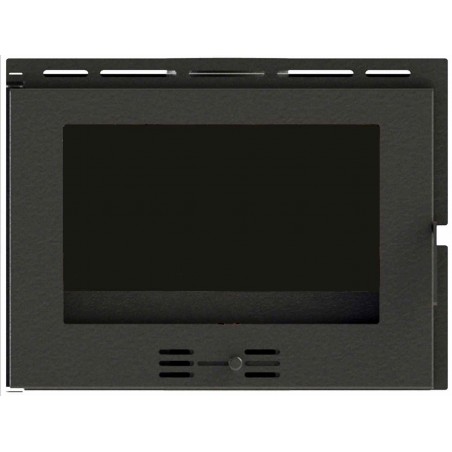

The L-90 F.lli Lerda ventilated wood-burning fireplace insert, entirely made of steel, is designed for ducting in two rooms.



The Simple line includes: the 3 mm combustion chamber, the 3 mm deflector and the 6 mm thick back plate.



If you have a fireplace that you use little or that you want to redevelop, this product is the one for you.



The wood-burning insert is very simple to assemble: the fan is plugged into the back of the fireplace, and simply needs to be connected to a 220V power supply. Please remember that the fireplace is supplied with a fan, but the electrical connection must be made on site.



F.lli Lerda control unit with temperature kit code FLCENTR separately , which satisfies these requests. Otherwise, for manual on/off use and adjustment of the fan in one of the five speeds, simply purchase the F.lli Lerda Touch control unit code FLELX AIR .



For ducting we recommend using flexible aluminum or steel pipes and covering them with mineral wool, so as to avoid heat loss during the journey. The manufacturer guarantees good performance for ducts of up to 5 meters in length and made without elbow bends. The connection of the canalization pipes in the appropriate seats must be connected using connection sockets, code FLRaccordiCan .



The F.lli Lerda wood-burning fireplace inserts are the best way to heat your rooms with maximum energy efficiency: the wood-burning fireplace becomes an excellent alternative or integration to traditional heating.

Ventilated wood-burning fireplace insert in thick S235JR steel, black colour, with two ductable outlets, nominal thermal power of 18kw and 70% efficiency with approved autonomy of 8 hours. Complies with European standard EN 13229.



It is equipped with 4mm high temperature ceramic glass and a removable ash drawer.



Dimensions 90x52cm; depth with fan 56cm; internal dimensions of the hearth 42x79cm; useful depth 33cm.



Model L-90, Simple line, F.lli Lerda brand.



Technical features:

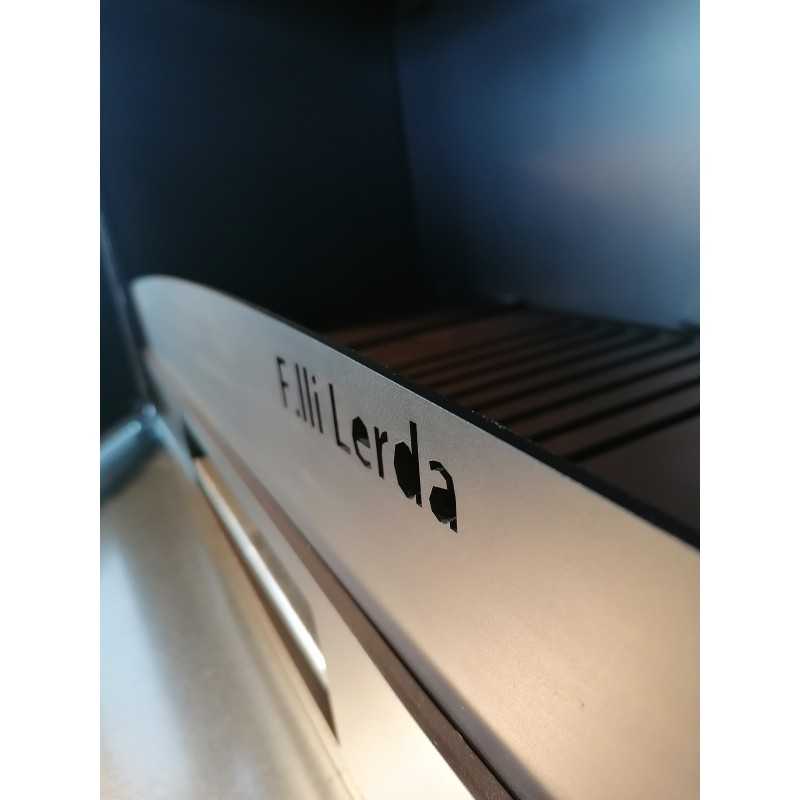

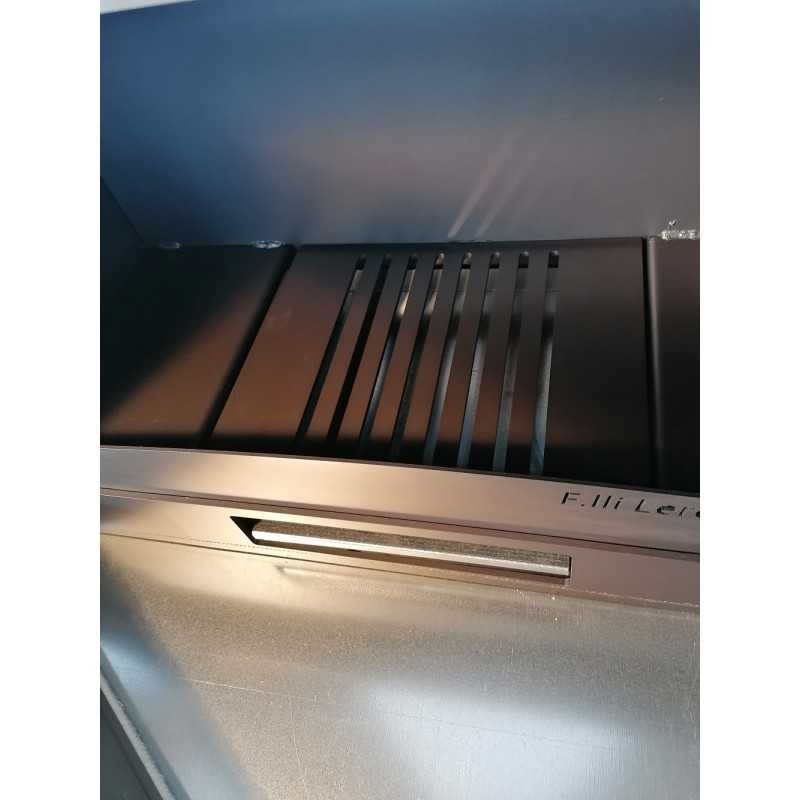

  • 3 mm deflector
  • 3 mm combustion chamber
  • Entirely made of high thickness S235JR steel
  • Nominal thermal power: 18 Kw
  • Yield: 70%
  • Carbon monoxide release rate in fumes: 0.23%
  • Average flue gas outlet temperature: 260 °C
  • Continuous fire hearth
  • Approved autonomy: 8 hours
  • Product approved to European standard EN 13229

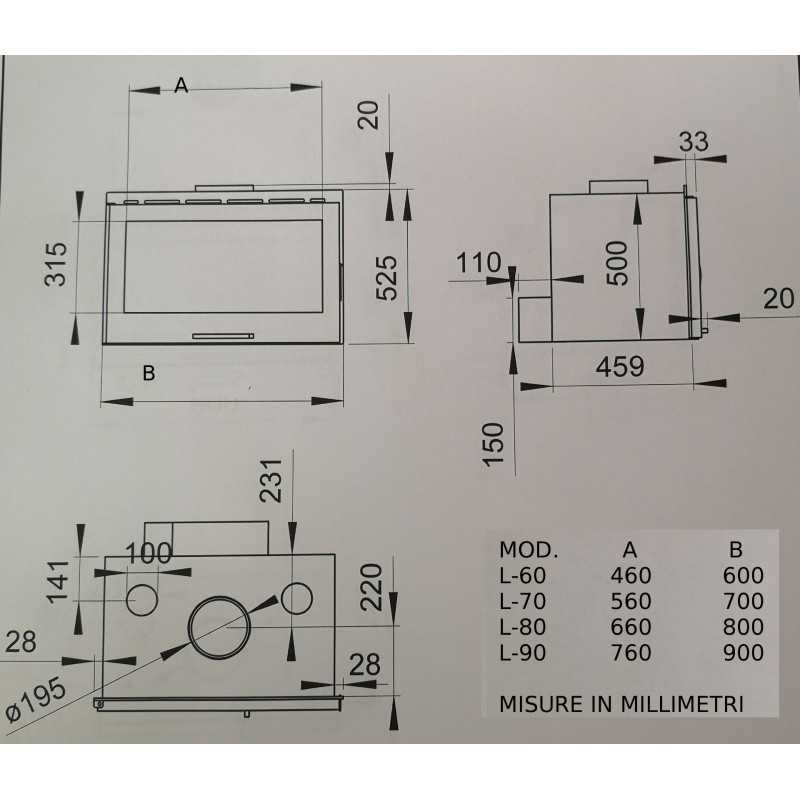

  • Dimensions (W x H x D with fans): 900x520x560 mm
  • Internal dimensions of the hearth (H x W): mm (420 x 790), useful depth: 330mm
  • Glass size (W x H): mm (730 x 390)
  • Thickness: 4mm
  • Ceramic glass for high temperatures 800°C

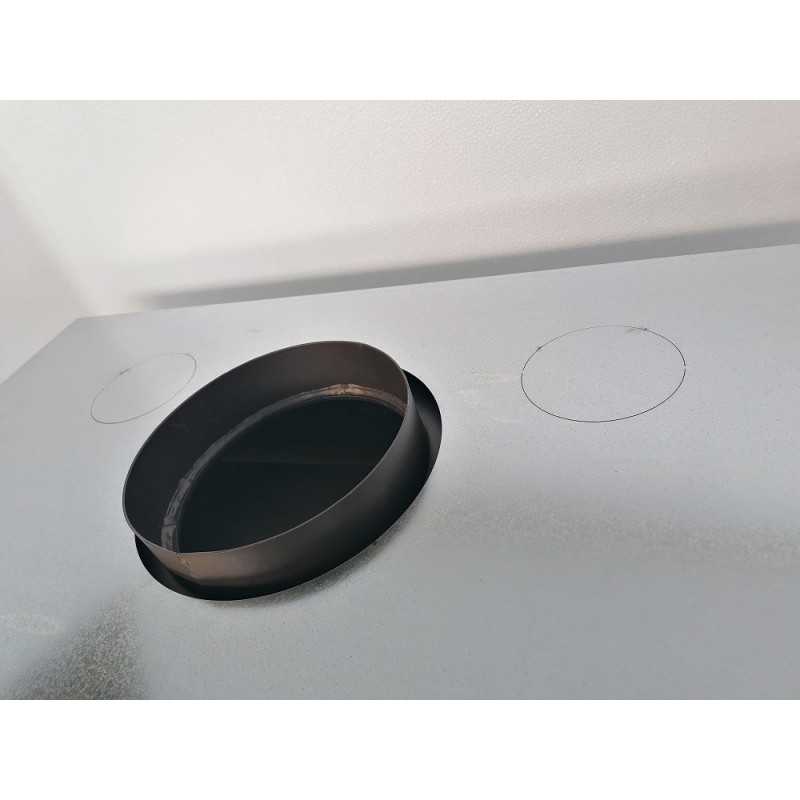

  • Ø smoke outlet 194 mm

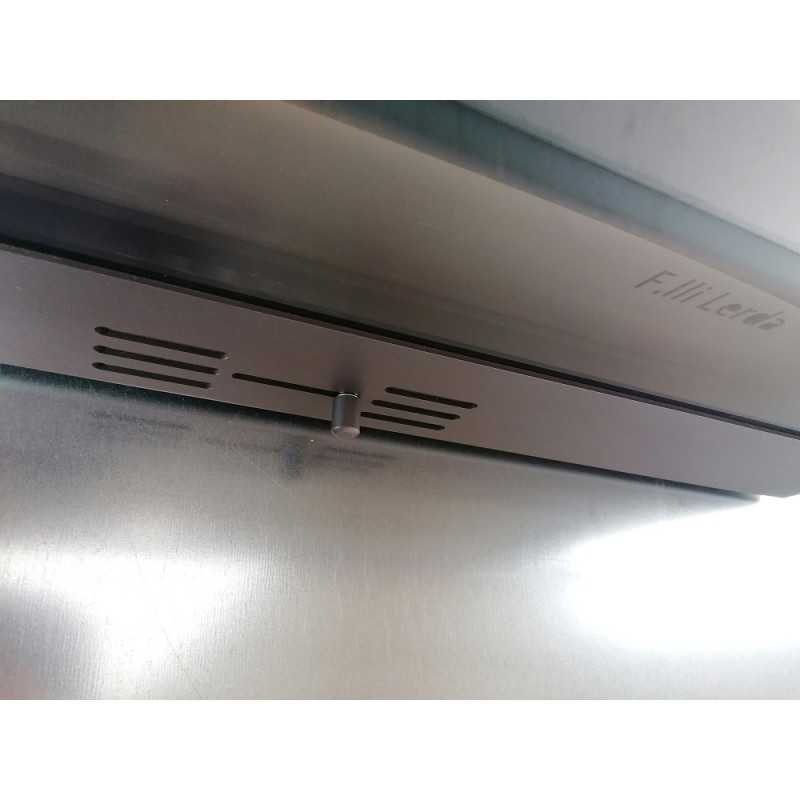

  • Fuel air adjustment on the front

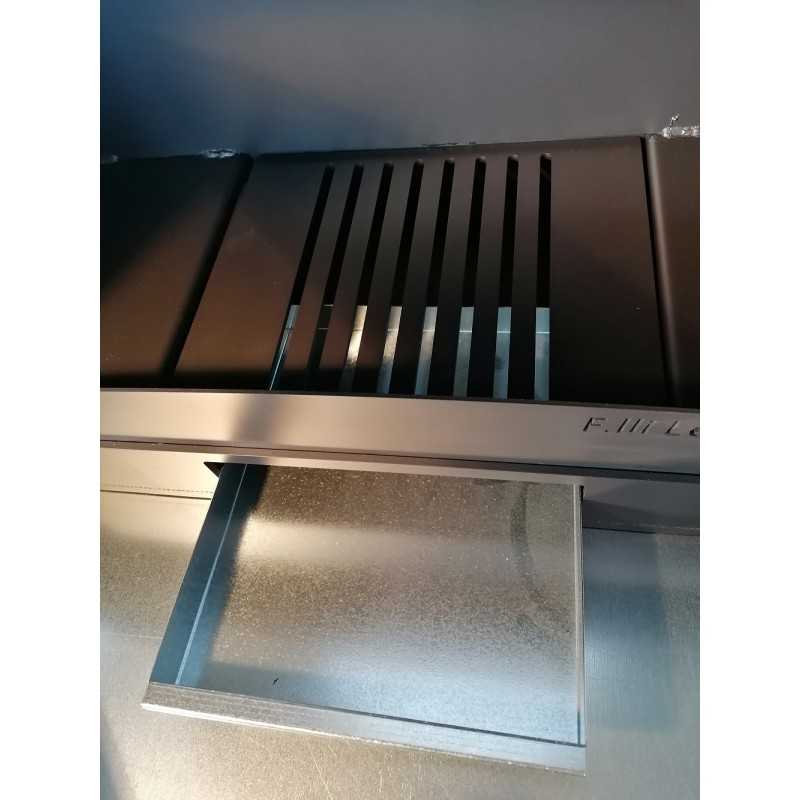

  • Removable ash drawer
  • Forced ventilation
  • Tangential fan with a flow rate of 200 cubic meters per hour
  • 2 ductable outlets Ø 100 mm
  • Warranty: 2 years
